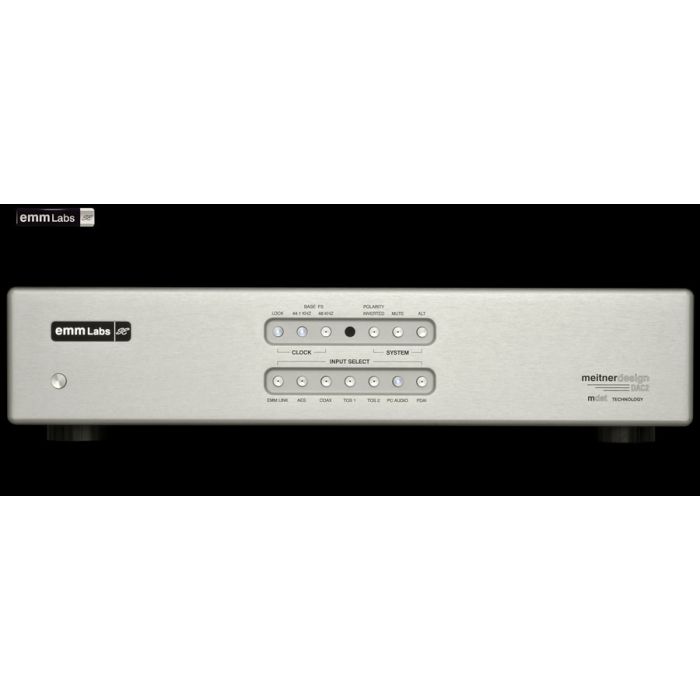

Manuel du convertisseur EMM Labs DAC2X (en anglais)
L'ensemble convertisseur DAC 2X v2 et drive CD et SACD TSDX est proposé à 35 400 €
Caractéristiques: (traduction à venir sous peu)
- XDS1-generation MFAST™ technology for instant signal lock, jitter-free performance
- XDS1-generation Meitner Digital Audio Translator (MDAT™) signal processing technology
- XDS1-generation proprietary 5.6 MHz discrete dual differential MDAC™ converters
- XDS1-generation reference power system
- Exclusive aerospace-grade composite circuit boards
- EMM OptiLink input provides DSD transfer from matching TSDX CD/SACD Transport
- Remote-controllable polarity inversion performed in the digital domain
- 24bit-192kHz support on all PCM inputs including USB
- DSD streaming over USB (DoP 1.0 specification)
- Secondary USB port for future firmware upgrades
- Serial port for wired remote control
- Precision-machined massive aluminum chassis
- Precision-machined infrared remote control
- CE-compliant device
Power Supply:
- Power factor corrected
- Factory set to 100V or 115V or 230V, 50/60Hz
- Power consumption: max. 50 W
Digital Input Formats:
- EMM OptiLink (CD/SACD from TSDX)
- DSD streaming over USB (DoP 1.0 specification)
- Up to 24bit, 192kHz on all PCM inputs
- USB Class 2 Audio
- AES/EBU XLR PCM
- 2x SPDIF Coax
- 2x SPDIF Toslink
Stereo Audio Outputs:
XLR 300 ohms balanced: +15.4dBu, 4.6Vrms
RCA 150 ohms unbalanced: +9.4dBu, 2.3Vrms
