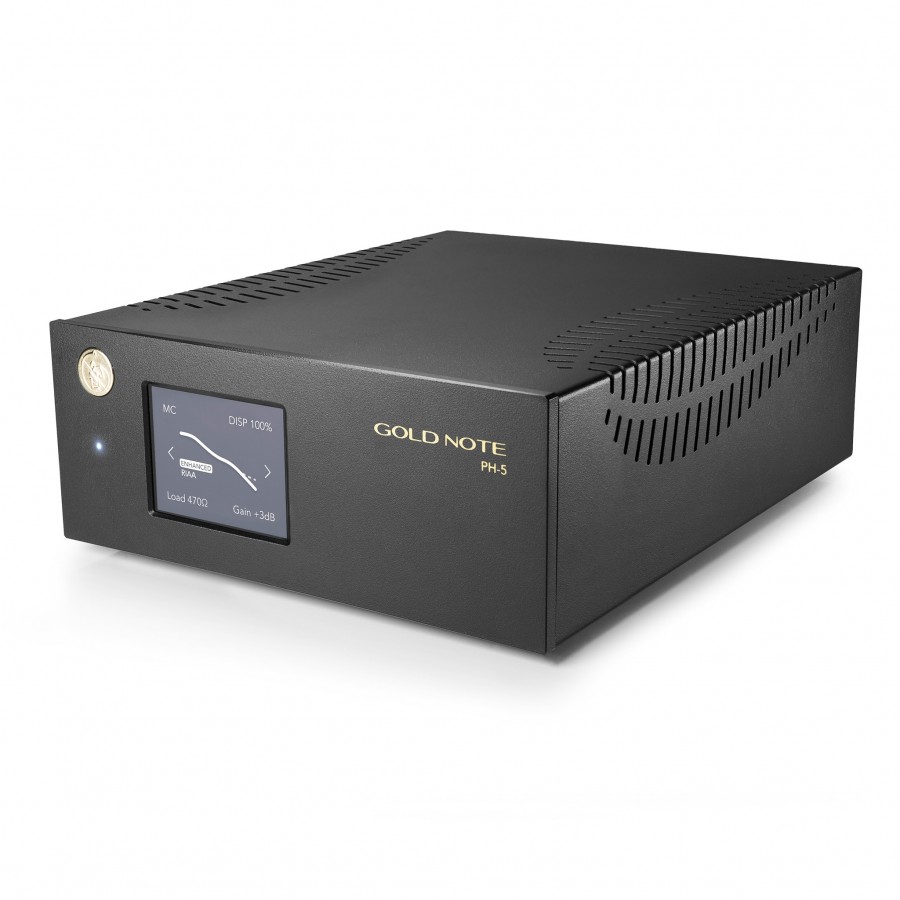

Gold Note PH-5

Disponibilité : Sur commande
Donnez votre avis! 4.2371 3382

Vue générale rapide

Le PH-5 est un étage phono de nouvelle génération qui possède tout ce dont vous avez besoin pour vivre la meilleure expérience vinyle qui soit : 1 entrée RCA stéréo, 6 courbes d'égalisation (RIAA, DECCA-LONDON e AMERICAN COLUMBIA plus améliorées), des réglages MM et MC, et un grand écran qui affiche tous les réglages en temps réel.

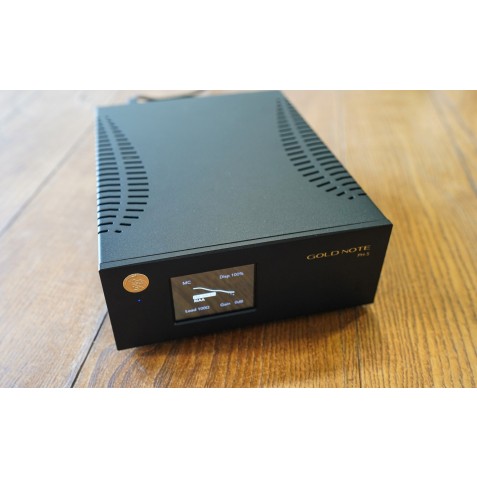

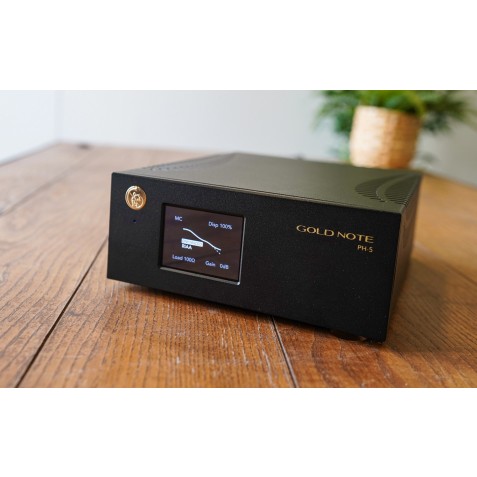

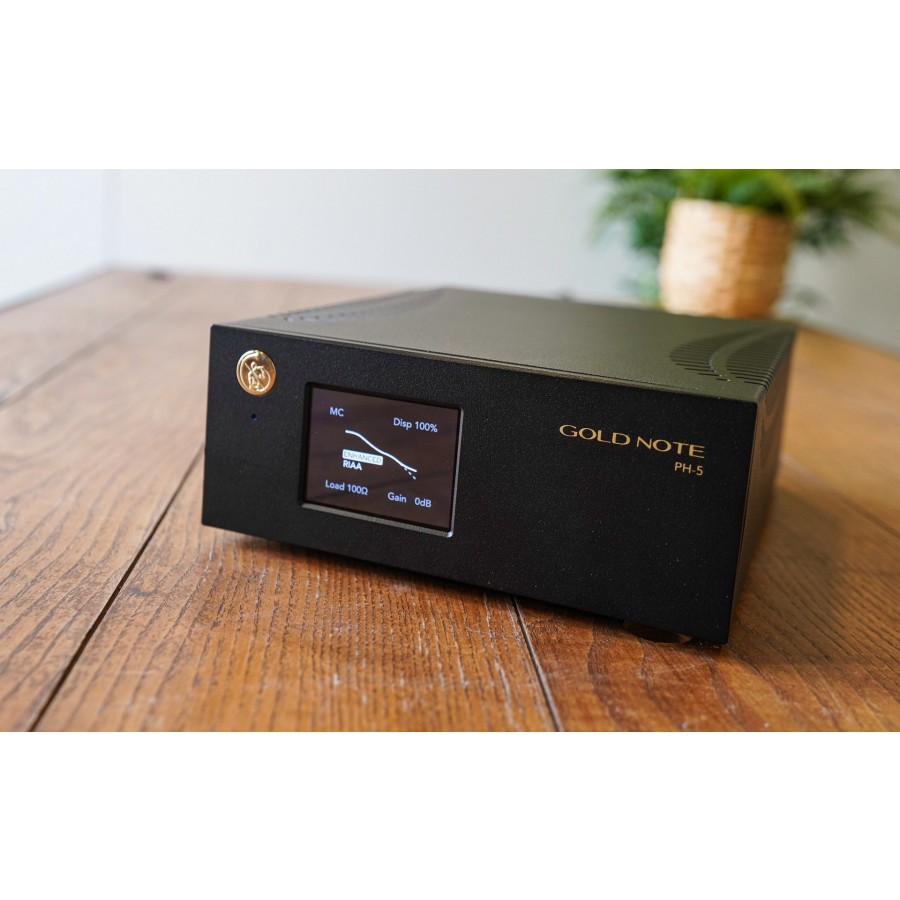

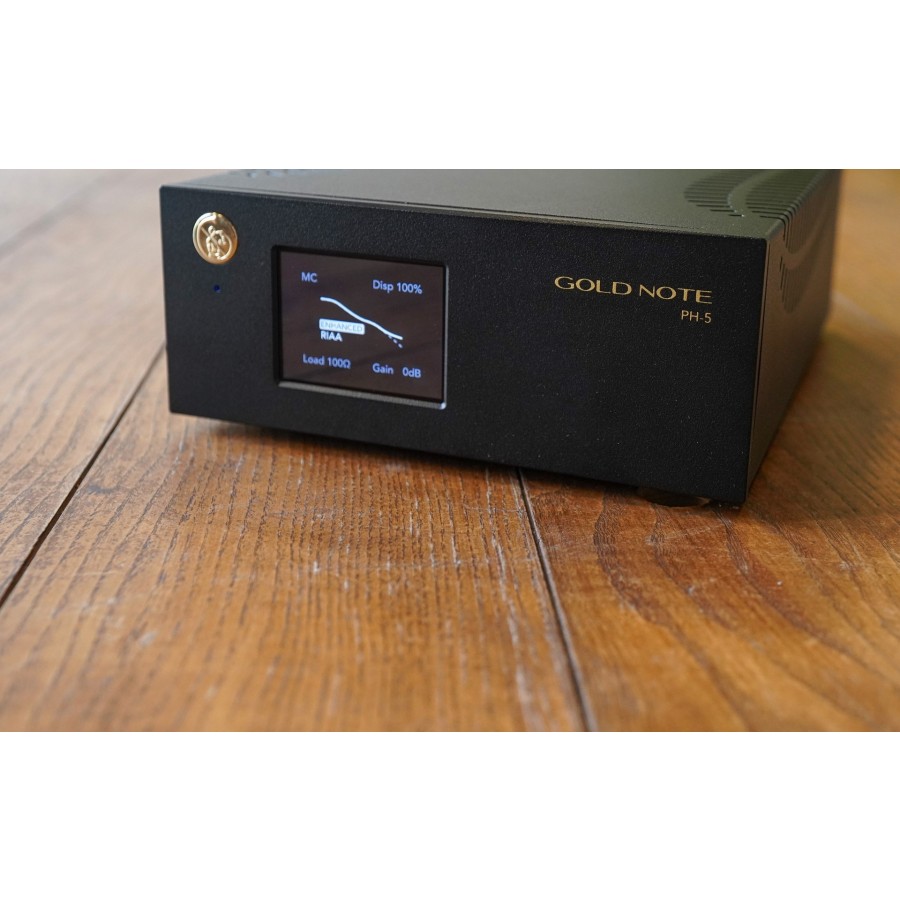

Le PH-5 dispose d'un écran tactile, une solution moderne pour modifier les réglages instantanément, même en écoutant de la musique.

Informations complémentâtes sur l'alimentation PSU-5 dédiée au PH-5 : https://alchemyofsound.be/gold-note-psu-5.html

890 €

Disponibilité: En stock

890 €

Détails

SPÉCIFICATIONS

COURBES D'ÉGALISATION

  • 3 courbes d'égalisation (RIAA, Decca London, American Columbia) avec option Enhanced.

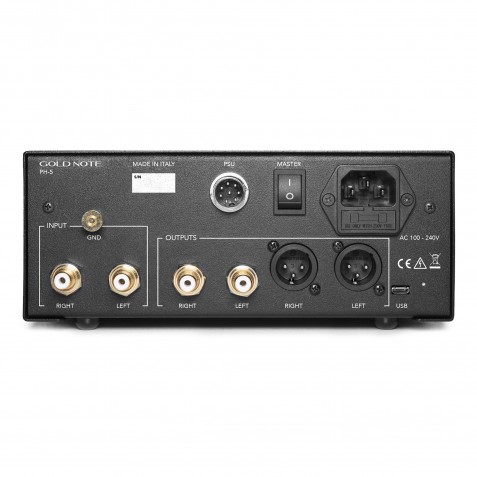

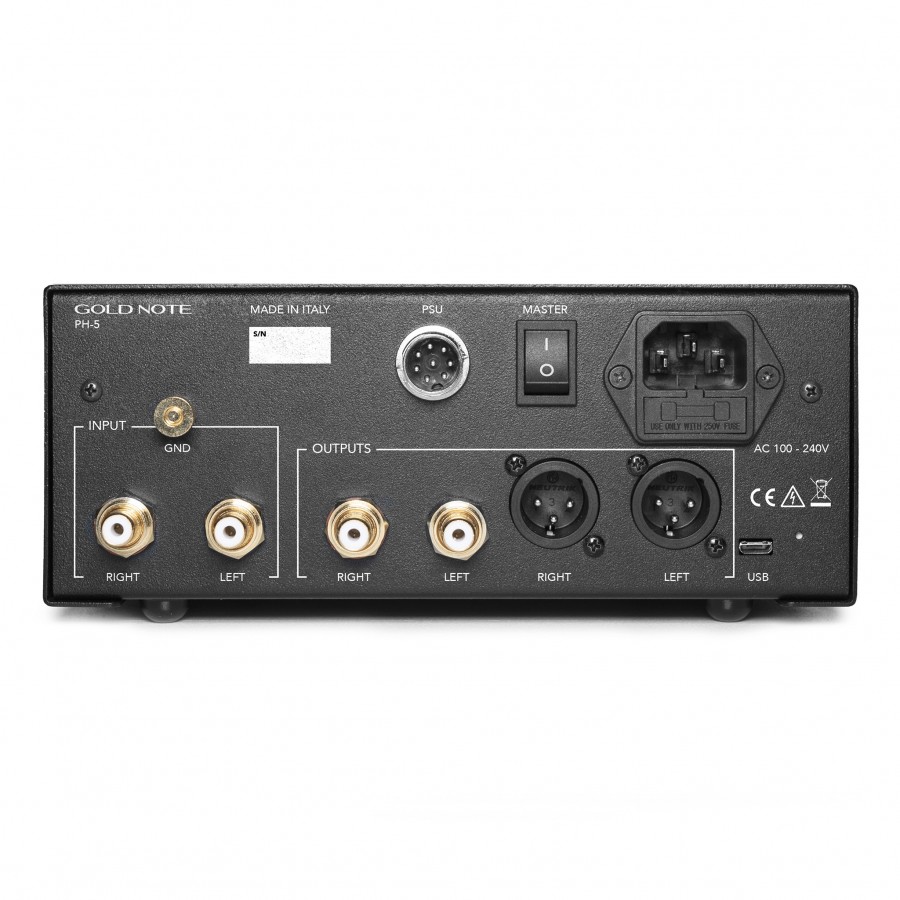

ENTRÉES ANALOGIQUES

  • 1 RCA MM/MC

SORTIES ANALOGIQUES

  • 1 RCA
  • 1 XLR

IMPÉDANCE DE SORTIE

  • 50Ω

FILTRE SUBSONIQUE

  • 10Hz/36dB octave

DISTORSION HARMONIQUE TOTALE THD

  • <0.05% @ 1kHz

RAPPORT SIGNAL/BRUIT

  • 89dB

RÉPONSE DYNAMIQUE

  • 105dB

RÉPONSE EN FRÉQUENCE

  • 20Hz - 20KHz ± 0.3dB
  • Améliorée 20Hz - 50KHz ± 0.3dB

SENSIBILITÉ D'ENTRÉE

  • 0,1mV MC jusqu'à 10,0mV MM

IMPÉDANCE D'ENTRÉE

  • 9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ]

CAPACITÉ D'ENTRÉE (MM)

  • 220pF

GAIN

  • 40dB MM à 60dB MC avec 4 options [0dB, + 3dB, ± 6dB].

ALIMENTATION

  • Alimentation électrique 100-120V ou 220-240V, 50/60Hz
  • Consommation électrique : 10W
  • Consommation en mode veille : < 0,5W
  • Fusible 0,5A F

DIMENSIONS ET POIDS

  • 200mm W 80mm H 260mm D
  • 1.2Kg net, 2.2Kg emballé

FINITIONS

  • Noir
