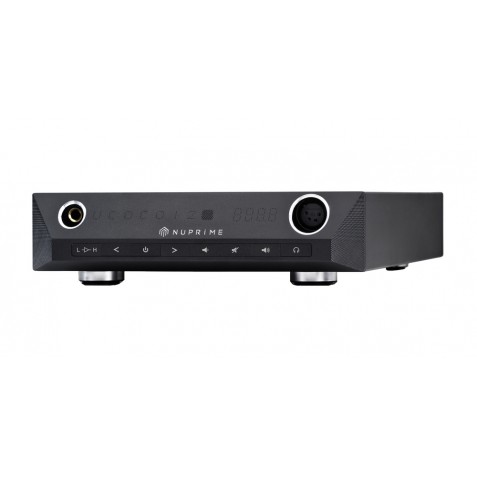

Nu Prime DAC-10

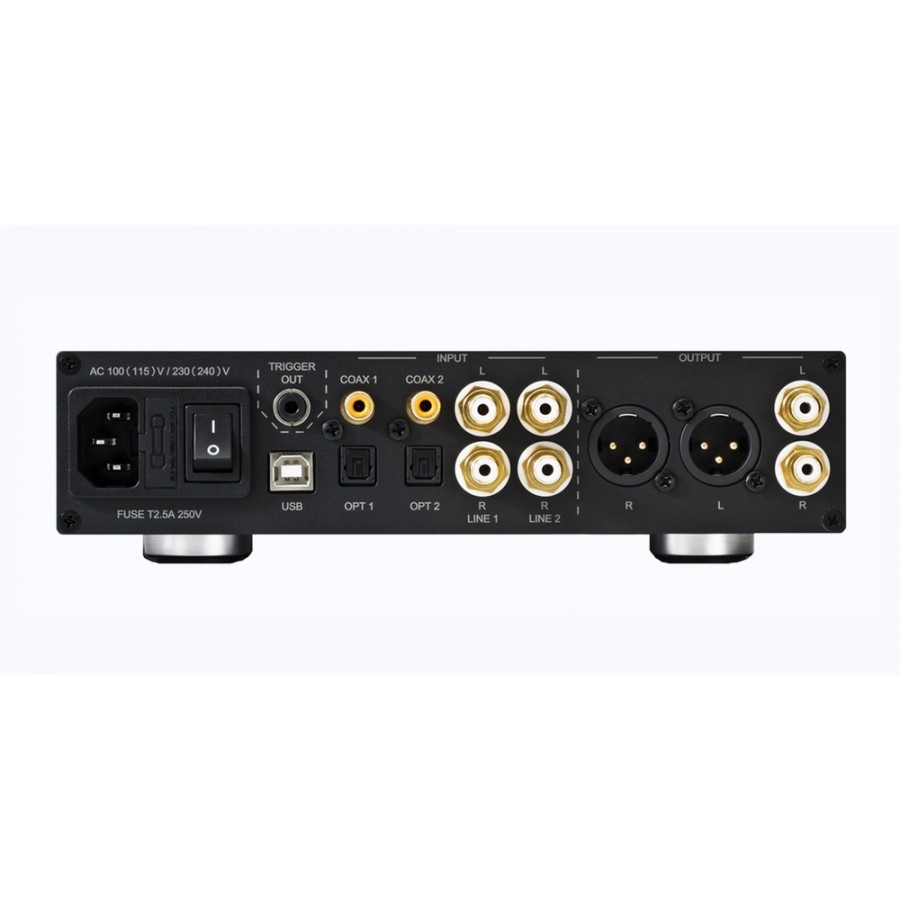

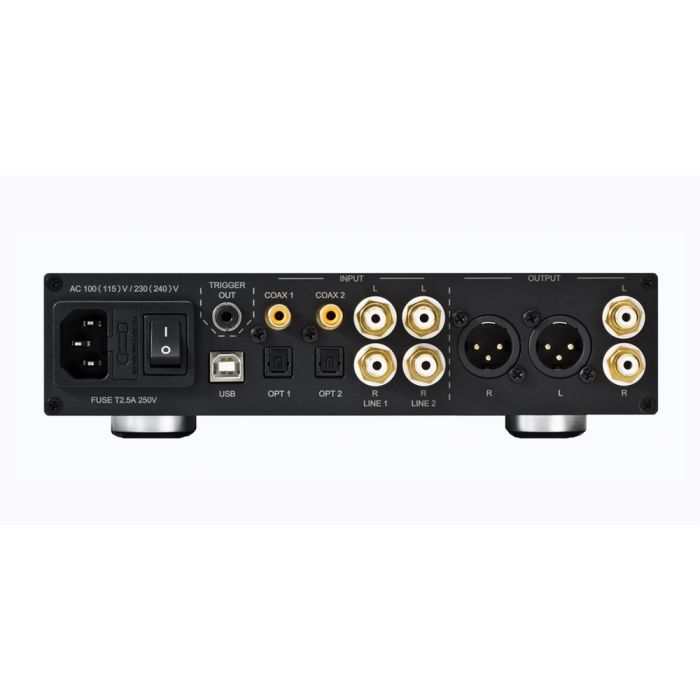

Entrées :

• 1 x USB PCM / DSD Digital (PCM up to 384kHz & DSD up to DSD256 )

• 2 x Coaxial Digital S/PDIF (PCM up to 192KHz supporting DoP format DSD64)

• 2 x Optical Digital S/PDIF (PCM up to 192KHz supporting DoP format DSD64)

• 2 x Analog Stereo RCA (does not go through A2D conversion, analog input is selected by the preamp directly to analog outputs)

Sorties :

• 1 x pair of stereo RCA out (max output 4V)

• 1 x pair of stereo XLR balanced out (max output 8V)

• 1 x Optical S/DPIF out

Spécifications :

• USB Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz and DSD 2.8MHz(64), 5.6MHz(128), 11.2MHz(256)

• S/PDIF Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96, 176.4KHz, 192KHz (Coaxial)

• Bit Resolution: 16-24-bits

• THD+N: 0.0003%

• Dynamic range: >-115dB

• Response en fréquence : 10Hz to 80kHz

• Poids : 5kg

• Dimensions : (hxlxp) : 60x215x390mm, 5Kg,

• Finition : noir et argent
